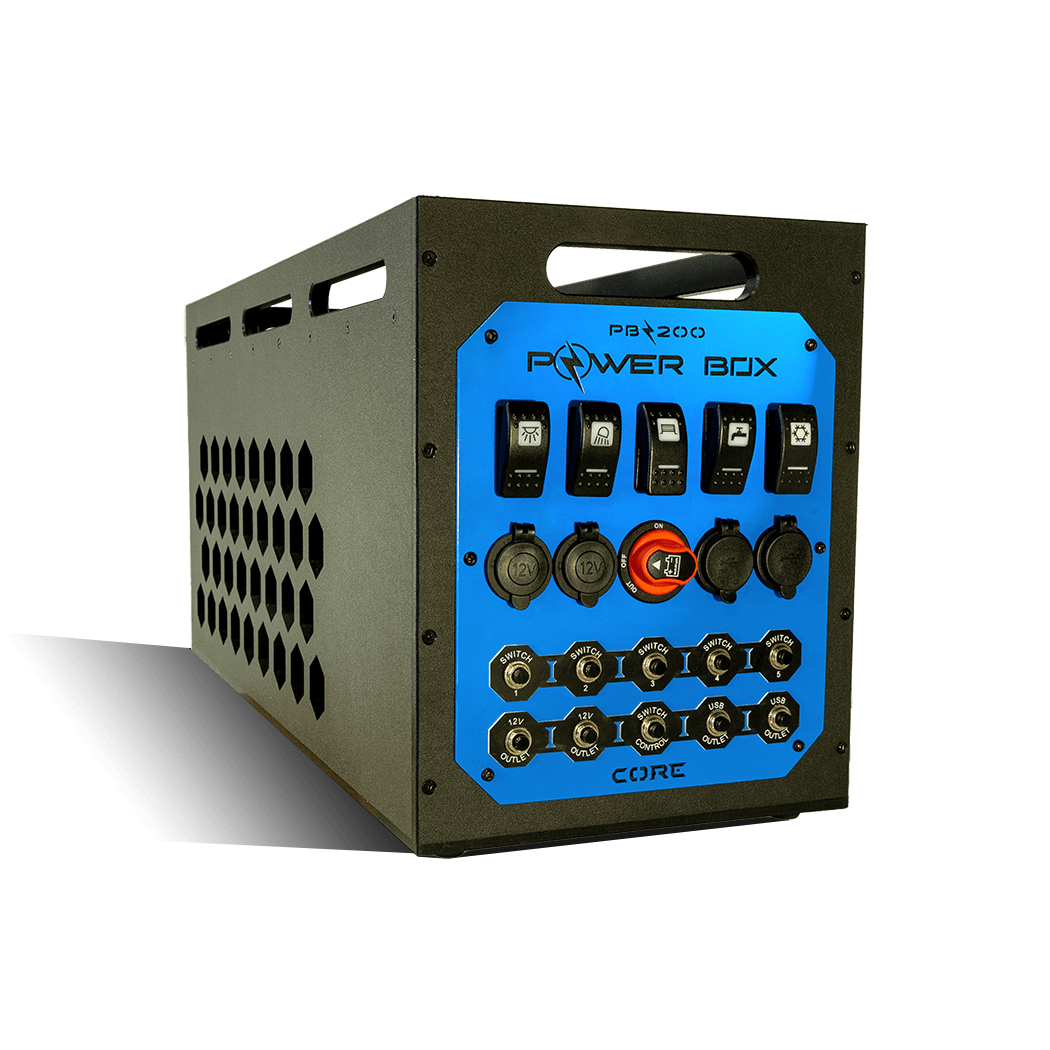

PowerBox PB200 by CORE Off-Road

Sale price$4,150.00

Bring out the BIG GUNS, the PB-200 is the ultimate in 12v portable systems specifically designed to power your touring canopy. With plenty of capacity in mind to power all your desired 12v needs, the PB-200 definitely ticks all of the boxes.

Starting with a 200ah Powertech lithium battery, coupled with Redarc’s 1225D charging platform and monitored by the Victron Bluetooth smart shunt it provides all the information required to monitor your 12v system and keep those beers cold.

Due to its design to be suitable for a canopy installation the control of lighting and additional items has been catered for by inception of 5 face-mounted rocker switches in the PB-200. This allows complete control of items like lighting, 12v oven and even a compressor. With fixed switching there needed to be a provision to keep your Power Box portable if required. This has been resolved via the 12 pin flush mount Deutsch plug on the rear which is isolated via a relay when the plug is disconnected ensuring no live terminals when the switch harness is disconnected. The switch harness comes with a 1.5m tail and diagram to allow the customer to wire in their desired electrical items into their Power Box.

More outlets than you can poke a stick at, the PB-200 comes with 4 x 50-amp rear-mounted anderson plugs providing 30amps constant supply to each outlet along with vehicle and solar inputs. The PB-200 also has received inverter capability via the 175amp rear mount anderson plug providing enough power to run up to a 1500w inverter. With both 12v socket outlets and USB outlets on the front face to charge any of the other ancillary items.

PB-200 dimensions 266mm wide x 680mm deep x 345mm high.

Weight – 32kg

Features & Inclusions

  • 200ah Powertech lithium battery
  • Redarc 1225D – DC to DC charger with solar input
  • Battery monitoring system
  • 5 x face panel mounted rocker switches for external items up 10a
  • Quick connect external switch harness for seamless integration
  • 175amp inverter supply anderson plug for inverter up to 2000w
  • 200amp main isolator
  • Solar Input – 50 amp anderson plug
  • Vehicle Input - 50 amp anderson plug
  • 4 x 30amp 12v power supply - 50 amp anderson plug
  • 2 x 12v socket outlet
  • 4 x USB charging ports
  • 10 x Fuse less resettable circuit protection
  • Custom front switch fascia with 6 colours to choose from
  • Anti slip SeaDek to top storage area
  • Mounting tray compatible
  • Charge cable kit compatible
